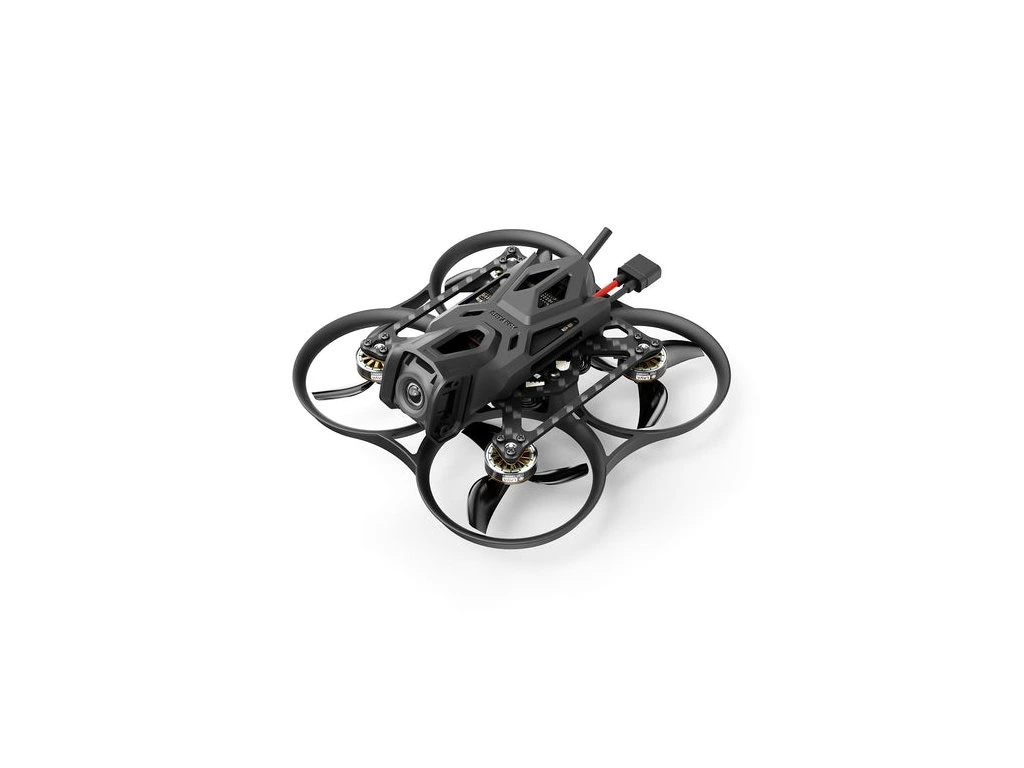

FPV Drone BETAFPV Pavo Pico II O4 ELRS 2.4G

FPV Drone BETAFPV Pavo Pico II O4 ELRS 2.4G

The Pavo Pico II O4 ELRS 2.4G is a purpose-built HD cinewhoop, crafted to deliver cinematic 4K/60fps footage in a compact, agile platform. Fully optimized for the DJI O4 digital video system, it combines a rigid, easy-to-assemble frame, advanced vibration isolation, and a high-efficiency powertrain — all while offering full-flight control via ELRS 2.4G. It’s ideal for pilots who want top-tier HD video and precise control in a micro form factor.

Features:
- O4 Air Unit Bracket II: Integrated mount with 4 shock-absorbing balls to isolate vibration and eliminate jello.
- Guided Frame Construction: Injection-molded structure with embedded nuts and guided mounting points; only 4 screws needed for a secure, aligned build.
- O4 / O4 Pro Compatibility: Redesigned carbon plate accommodates both DJI O4 and O4 Pro air units, making your build future-ready.
- Upgraded Propulsion: LAVA 1102 motors combined with Gemfan 45 mm 3-blade props deliver ~10 % more thrust and improved efficiency.
- Lightweight Design: About 53.7 g in O4 version on an 80 mm wheelbase.
- Advanced Flight Controller: F4 20A AIO FC with dual BECs (9V / 2A for HD VTX and 5V / 3A for peripherals).
- ELRS 2.4G Control Link: Built-in ELRS receiver provides robust radio control in micro builds.
- Optimized Video Performance: Preconfigured PID & filter setups tailored for O4 / O4 Pro for clean, stable footage.
- Reasonable Flight Time: Up to ~6 min 30 s (with 550 mAh 2S) in the O4 configuration.

Comes with DJI O4 HD VTX

Specification：
Color: Black
Wheelbase: 80 mm
Frame: Pavo Pico II Brushless Whoop Frame
Powertrain: LAVA 1102 motors, 14000 KV
Propellers: Gemfan / GF 45 mm 3-blade
Battery Slot: 16x12.7 mm
Batttery: 2S 450mah
Connector: XT30
Flight Controller / ESC: F4 20A AIO (2-3S)
Weight (O4 version): ~ 53.7 g
RX Version: Serial ELRS (2.4 GHz)
Flight Time: ~6 min 30 s with 2S 550 mAh (O4 version)

Package includes:
1x Pavo Pico II Brushless Whoop Quadcopter (O4 / ELRS 2.4G)
Top & bottom plates for O4 Bracket II
O4 Air Unit Pro bracket
4x GF 45 mm 3-blade props
Type-C to SH1.0 adapter + SH1.0-4 pin cable
Shock-absorbing balls & pads
Screws (various M2, M1.4)
2x 5.8G VTX antennas + mount
Phillips screwdriver & H1.5 hex wrench
