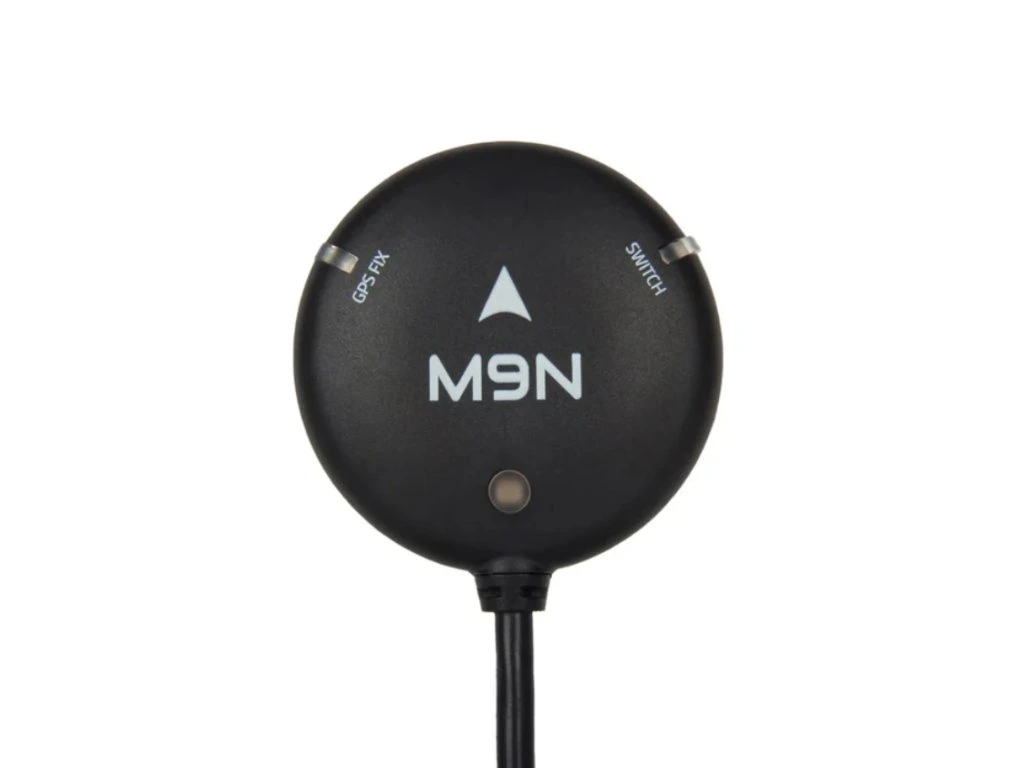

GPS Module Holybro M9N

Features:

- Ublox M9N GNSS Receiver
- Accurate Positioning
- Fast Navigation Update Rate
- IST8310 Compass
- High-gain 25*25*4mm antenna
- Internal Buzzer, Safety switch
- Ultra Bright UI RGB LED

Specifications:

GNSS receiver: Ublox M9N
Number of Concurrent GNSS: Up to 4 GNSS, BeiDou, Galileo, GLONASS, GPS, QZSS
Frequency Band: GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1
Compass: IST8310Output Protocol: UBX (U-blox), NMEA
Output Protocol: UBX (U-blox), NMEA
Accuracy: 1.5 m CEP
Nav. Update Rate: Up to 25 Hz (4 concurrent GNSS)
GNSS Augmentation System: EGNOS, GAGAN, MSAS and WAAS, QZSS: L1S
Default Baud Rate: 115200
Input Voltage: 4.7-5.2V
Connector Type: JST-GH-10pin
Antenna: 25 x 25 x 4 mm ceramic patch antenna
Antenna Gain: 1.5dbi
Antenna LNA Gain: 22dB
Power consumption: Less than 200mA @ 5V
Operating Temperature: -40~80C
Dimension: φ50 x14.4 mm
Weight: 32g
Cable Length: 26cm (42cm cable purchase separately)

Other:
- Tri-color LED
- Onboard Buzzer
- Safety Switch
- LNA MAX2659ELT+ RF Amplifier
- Rechargeable Farah capacitance
- Low-noise 3.3V regulator

Package includes:
1x M9N GPS Module
1x Fixed Carbon Fiber GPS mount
