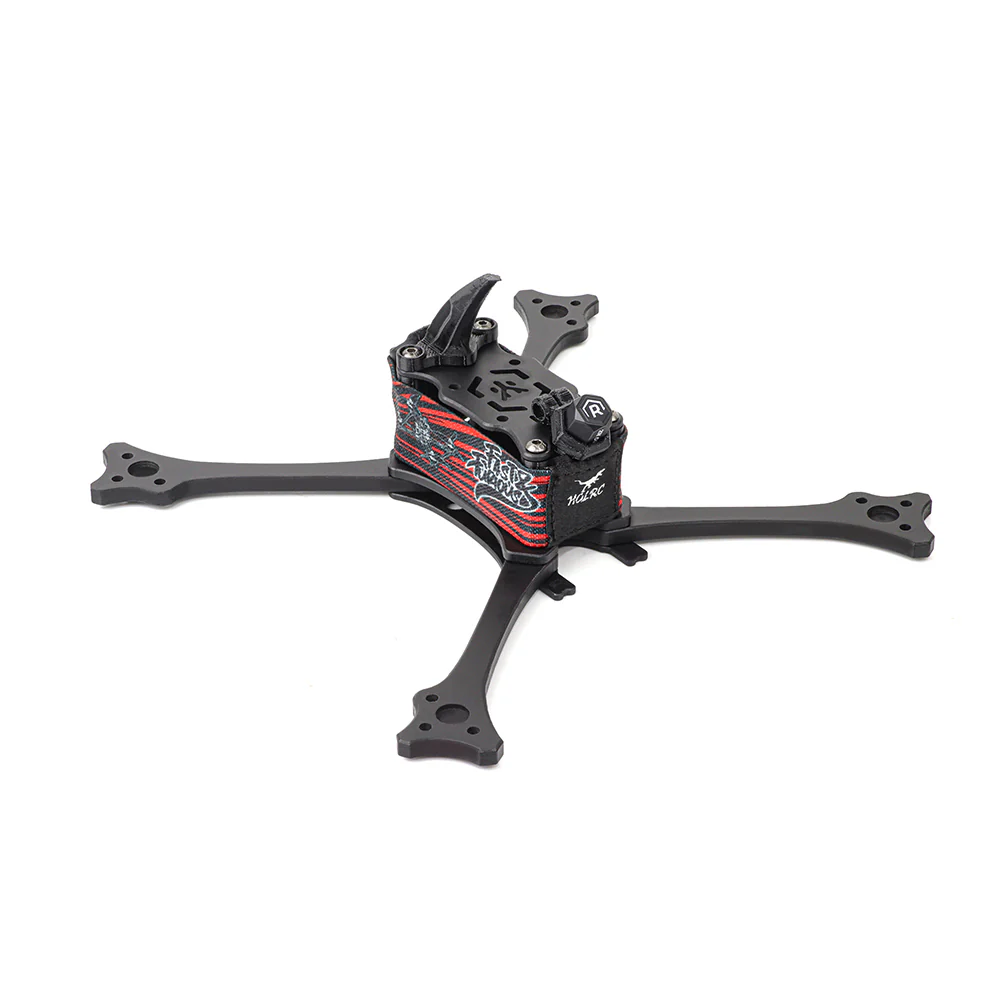

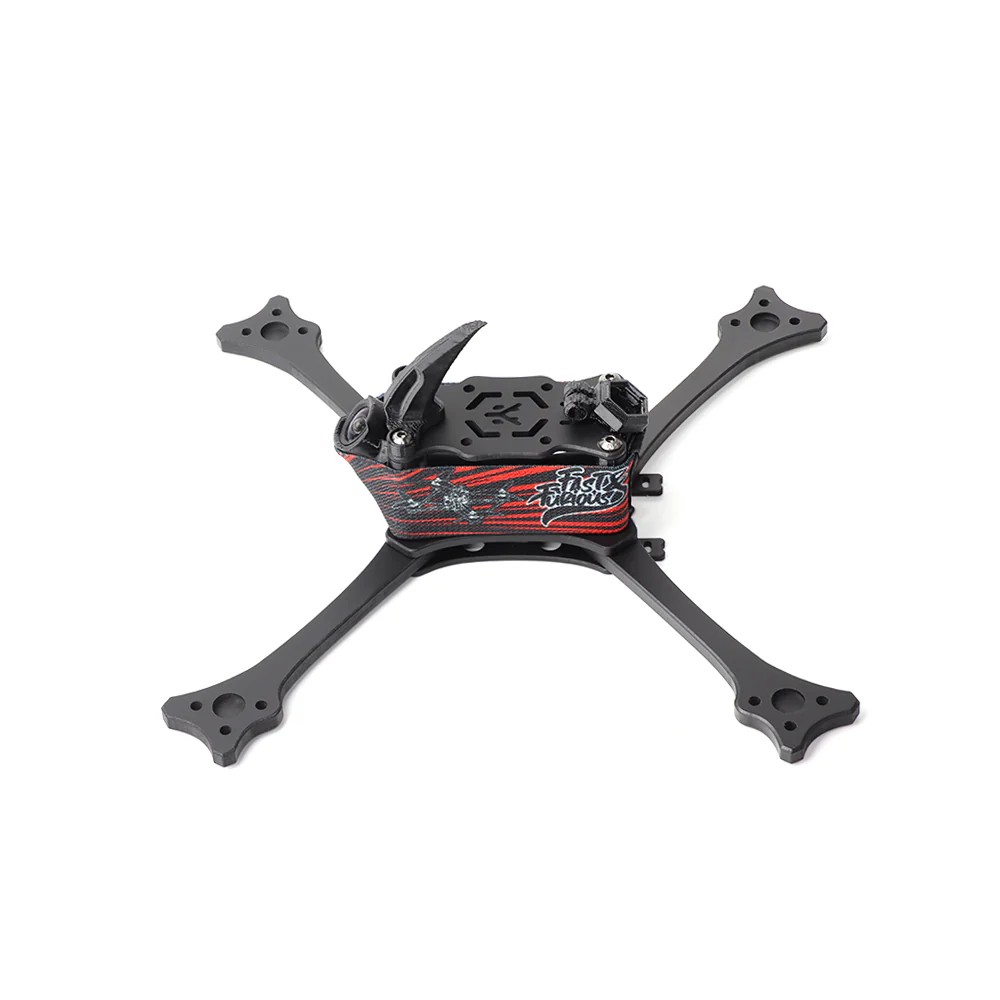

HGLRC Wind5 Lite V2 Frame Kit
Specifications:
- Material: Toray-T700 carbon fiber + 7075 aviation-grade aluminum
- Frame Wheelbase: 195mm
- Installation Space: 26mm
- Flight Controller Mounting Holes: 20x20mm (M3)
- VTX Mounting Holes: 20x20mm (M3)
- Motor Mounting Holes: 16x16mm (M3)
- Frame Dimensions (L x W x H): 172.5mm x 169mm x 70mm
- Default Camera Mount: FOXEER Predator 5 NANO (45-degree mount)
- Frame Thickness: Top Plate: 2mm / Middle Plate: 3mm / Bottom Plate: 2mm / Arms: 5mm / Protective Rod: 3mm
- Weight (Single Frame): 69.5g (including printed parts, aluminum columns, and screws)
| Brand | HGLRC |
| Size | 5-inch |
| Motor size | 2306.5 |
| Wheelbase | 195mm |
