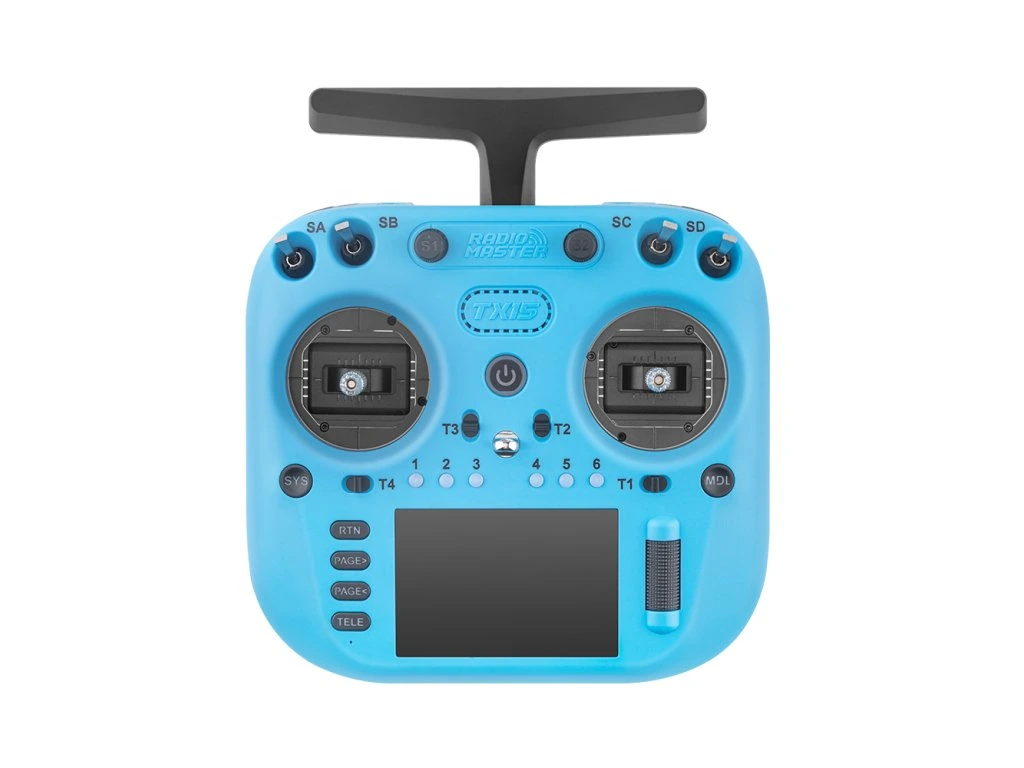

Controller RadioMaster TX15 ExpressLRS
The RadioMaster TX15 ExpressLRS is a versatile and compact radio controller designed for modern FPV and RC pilots who demand reliability and flexibility. Featuring the powerful ExpressLRS protocol, it ensures ultra-low latency and rock-solid long-range performance. The TX15 comes with an ergonomic design, a clear color display, smooth gimbals, and a customizable interface, making it comfortable and intuitive to use even during long sessions. With support for multiple model profiles, open-source firmware, and external module bay compatibility, it is future-proof and ready to adapt to your flying style. Perfect for both beginner and professional pilots who want a high-performance radio link in a sleek, portable form.
Features:
- Blazing-Fast Performance: The STM32 H7 chip powers our fastest radio ever.
- Touchscreen Display: 3.5-inch, 480x320 IPS touchscreen with vivid colors and sharp detail.
- Precision Gimbals: V5.0 Hall sensor gimbals
- Built-in ExpressLRS: 2.4GHz / Sub-G 868/915MHz ExpressLRS integration for reliable and long-range control.
- Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for more flight time.
- Powerful, Efficient Cooling System: Low noise, high output fans and an aluminium heat sink keep your radio cool even on the hottest days.
- Foldable Antenna: Compact and easy to store without compromising signal strength.
- Built-in Microphone: For future feature expansion.
- Built-in Gyro: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.
Interchangeable Shoulder Switches: Customize your controls to match your flying style.
Specifications:
Item: TX15 Radio Controller
Size: 178 x 168 x 81 mm
Weight: 605g (without battery)
Frequency: 2.400GHz OR Sub-G 868/915MHz
Internal RF: ELRS 2.4GHz / Sub-G 868/915MHz
Supported Protocols: Express-LRS
Cooling Fan: Yes
Transmitter Module: Built-in ELRS
Built-in Flash Size: 4GB
Built-in Microphone: Yes (Future expansion)
Built-in Gyro: Yes (ICM-42607-C)
MicroSD card (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
Antenna Gain: 2dB (transmit power adjustable)
Current: 875mA at max power output
Voltage Range: 6.6 - 8.4V DC
Radio Firmware: EdgeTX (Transmitter)
Module Firmware: ExpressLRS
Channels: Max 16 channels (Receiver dependent)
Display: 3.5-inch IPS touchscreen (480x320 resolution)
Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
Connectivity: USB-C
Gimbals: V5.0 Hall sensor gimbals (standard)
Gimbal Sticks: M4
Upgrade Method: USB-C (UF2)
Module Bay: JR-compatible module bay for additional modules
Color: Gray
Package includes:
1x TX15 Radio Controller
1x Signature Carry Case
1x Short 2-position Latching Shoulder Toggle Switch Assembly
1x Short 2-position Momentary Shoulder Toggle Switch Assembly
1x 18650 Battery Tray
1x USB-C Cable
1x Screen Protector
1x 1.5mm Hex Wrench
4x High Tension Gimbals Springs
2x Gimbal Stick Set Screw
1x Stickers Set
1x User Manual
1x Inventory Card
| Colour | Blue or Green or Grey or Pink or White or Yellow |
| Brand | RadioMaster |
