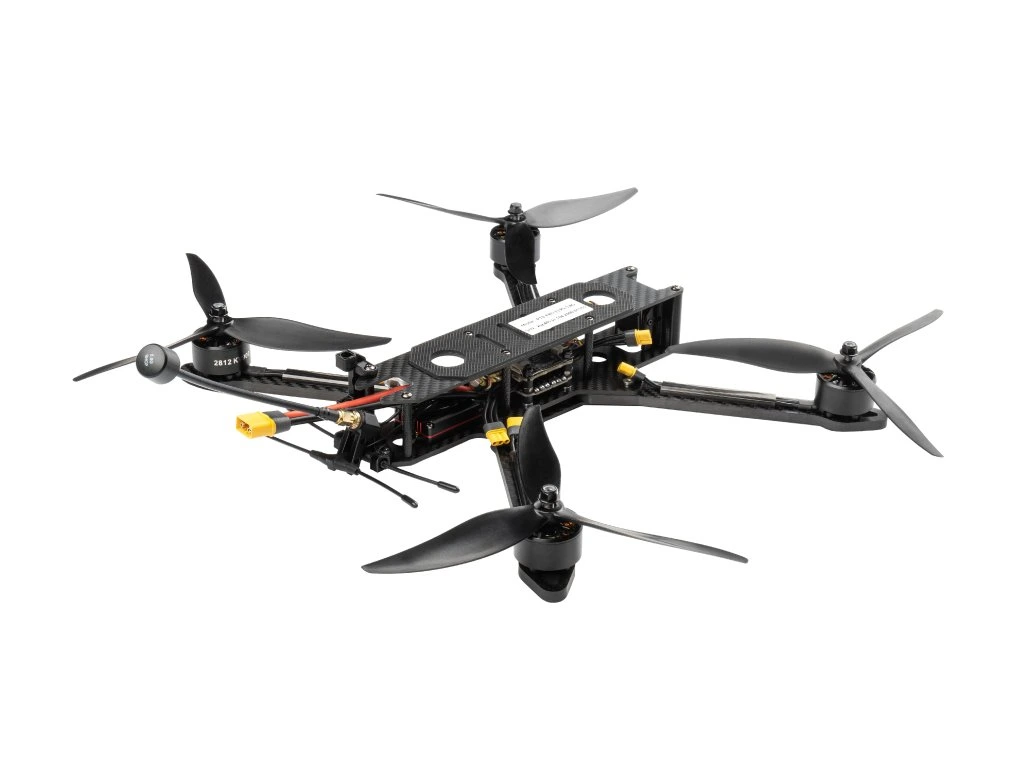

FPV drone F42 7" Starter DIY Kit
The set has been created in collaboration with the Estonian Aviation Academy
Frame: Pilotix PT7 V3
Wheelbase: 320mm
Arm thickness: 6mm
Top plate width: 45mm
Top plate length: 270mm
Top plate thickness: 2mm
Bottom plate width: 45mm
Bottom plate length: 270mm
Bottom plate thickness: 3mm
Material: Carbon fibre
FC: F405 V3 Flight Control
ESC: 60A (burst 70A) - Bettle 3060 Electrical Regulation (ESC)
VTX: 5.8G 1.6W - Pilotix R1600
Antenna: Long 5.8G RHCP SMA
Motors: 2807-1300KV
Propeller: HQProp 7X3.5X3
Camera: H1
Gimbal System: None
Receiver: ELRS 2,4G Nano w/ Antenna
GPS: HGLRC M100 PRO GPS
Battery: 6S 8000mAh Li-ion 10C
Flight time with 8000mAh battery:
35 minutes (no payload)
16 minutes (2.5kg payload)
22 minutes (2kg payload)
MAX Speed: 150km/h
Maximum flight altitude (MSL): 6000m
Maximum rising speed: 15m/s
Stable Working Temperature Range: -20℃ - 50℃
Payload: 2000-2500g
NB! This is a DIY (Do It Yourself) Kit that is delivered unassembled.
| Size | 7-inch |
| Protocol | ELRS 868/915MHz |
| Signal Type | Analog |
