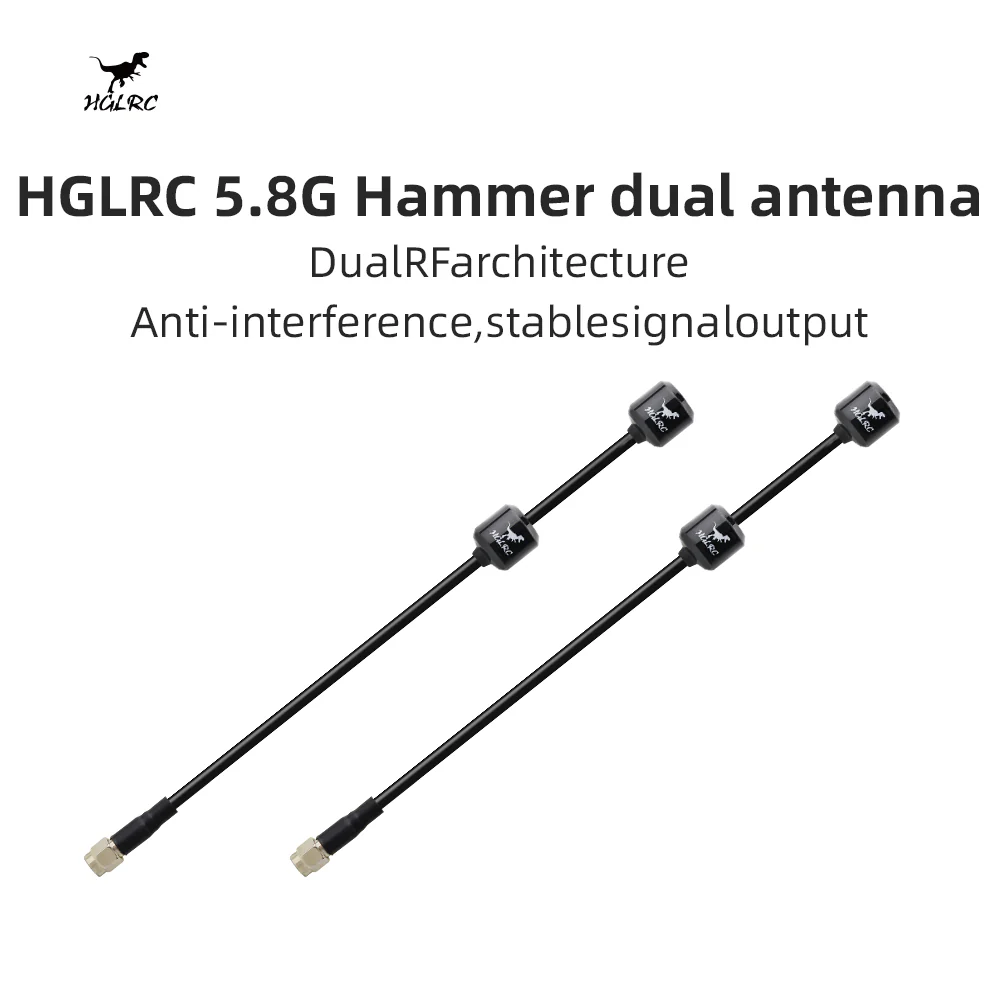

HGLRC 5.8G Hammer Dual Antenna

Dual RF Architecture: Combines dual-antenna design with dual-channel transmission to enhance link stability, improving signal coverage by 30% compared to single-antenna systems.
Anti-Interference Performance: Operates on the 5.8GHz high-frequency band to ensure reliable transmission in complex environments.

Product Name: HGLRC 5.8G Hammer Dual Antenna
Connector: SMA male (inner pin)
Frequency Range: 5.35GHz–6GHz
Max Gain: 4.4dBi (5800MHz)
Min Gain: 3.1dBi (5350MHz)
Avg Gain: 3.75dBi
Max VSWR: 1.75 (5300MHz)
Min VSWR: 1.17 (5550MHz)
Avg VSWR: 1.46
Max Radiation Efficiency: 81% (5550MHz)
Min Radiation Efficiency: 66% (5350MHz)
Avg Radiation Efficiency: 73.5%
Polarization: Right-Hand Circular Polarization (RHCP)
Cross-Polarization Suppression: -20dB
Axial Ratio: ≤3
Cable: RG141
Weight: 13.8g (±0.5g)
Size: Total length 170mm (±5mm)

Package Contents:
1 × HGLRC 5.8G Hammer Dual Antenna
