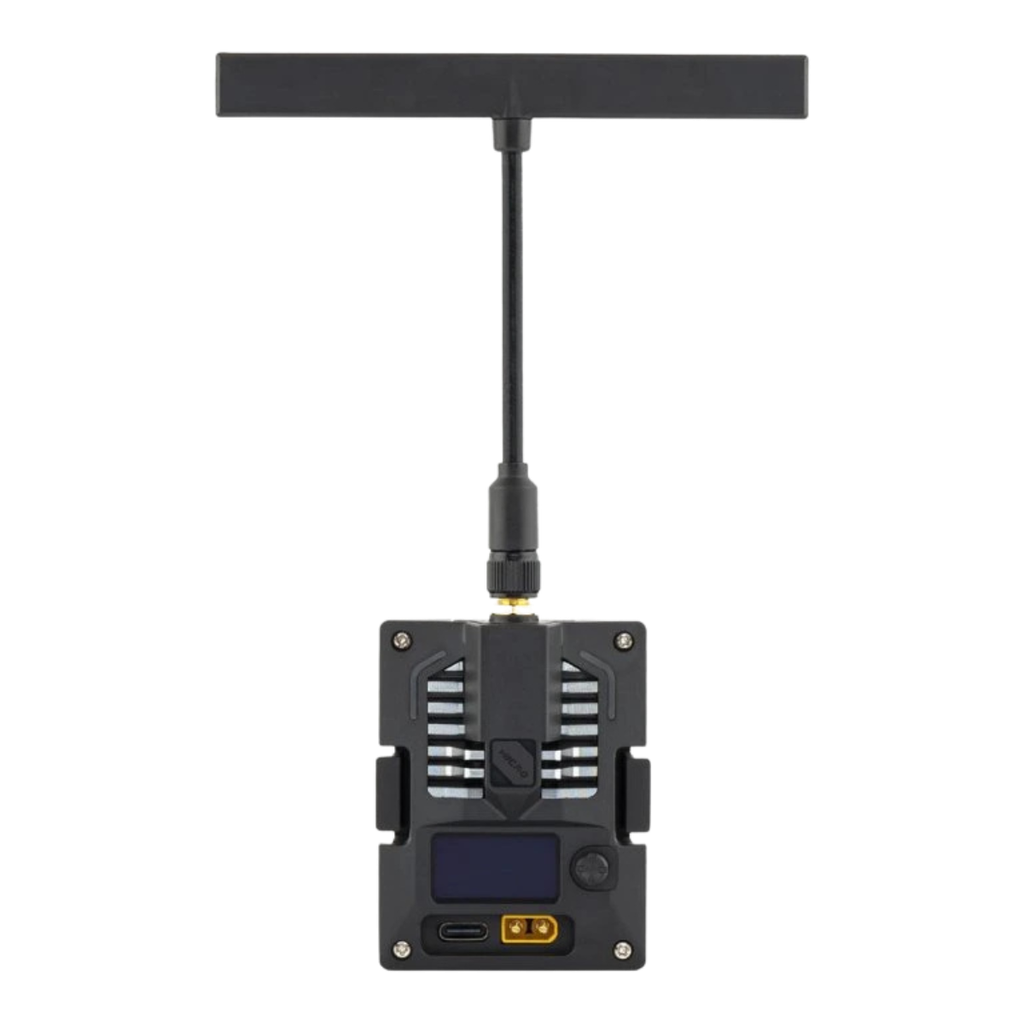

TX Module RadioMaster Bandit 868/915MHz Micro

Regulatory Domain: FCC915
MCU: ESP32(main), ESP8285(aux, as ESP backpack)
RF Chip: SEMTECH SX1276
Refresh Rate Min/Max: 25Hz/200Hz
RF Output Power: 1000mW/30dBm
Micro standard 5pin connector
Built-in OLED screen
XT30 Power Supply Voltage: DC 6V - 16.8V
Weight: 78.0grams (with T antenna)
Dimension: 64.1x49.6x34.1mm
