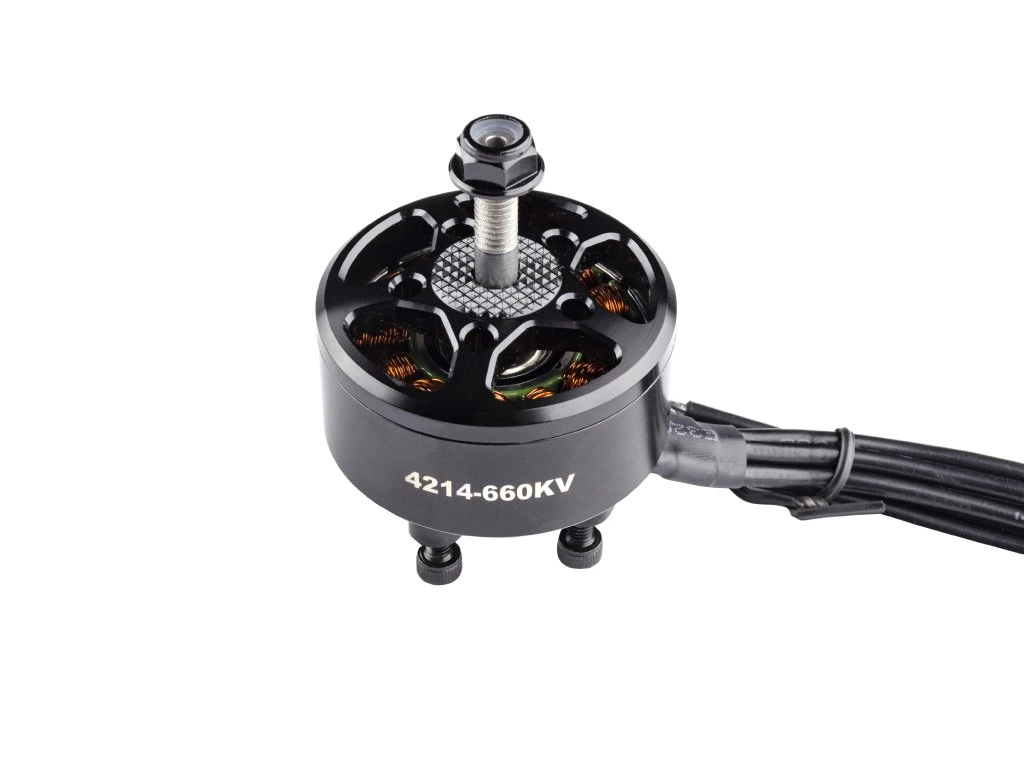

Motor Pilotix 4214-660KV

Motor Basic Parameters:

- Model: F4214
- Slot & Pole: 12N14P
- Motor Size: Φ49 x H43.5mm
- Magnet Temperature Resistance: 120℃
- Enamelled Wire Temperature Resistance: 180℃
- Isolation Test: 500V
- Motor Mounting Dimensions: 4×M4 @ D30mm

Motor Technical Parameters:

- Battery Compatibility: 8S LiPo
- No-load Current: ≤1.5A
- Resistance: 23.41mΩ ±3%
- Wire Size: 14AWG
- Wire Length: 300mm ±3mm
- Dynamic Balance: ≤20mg
- Weight (With Wire): 124.9g
